13Kw CNC Glass Cutting Machine Full Auto Glass Cutting Equipment

1 set
MOQ
38000
Price
13Kw CNC Glass Cutting Machine Full Auto Glass Cutting Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Glass Cutting Machine
Application: Building Material Shops, Manufacturing Plant,
Supply Scope: Loading Table, Cutting Table, Breaking Table.
Voltage: 380V 50Hz
Machine Dimension: 5,300*14,000*900mm
Glass Fetching Time: ≤ 40 Scends/sheet
After-sales Service Provided: Field Maintenance And Repair Service
Condition: New
Weight: According To The Size
Power(w): 13kw
Glass Thickness: 3~19mm,
Warranty: 1 Year
Usage: Glass Cutting
Color: Customized
Highlight:

13Kw CNC Glass Cutting Machine

,

Full Auto Glass Cutting Equipment

,

13Kw CNC Glass Cutting Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: Vibran-Qianjun
Model Number: 4228
Payment & Shipping Terms
Packaging Details: containers
Delivery Time: 90 days
Payment Terms: L/C,T/T,MoneyGram,Western Union
Supply Ability: 50sets per month
Product Description

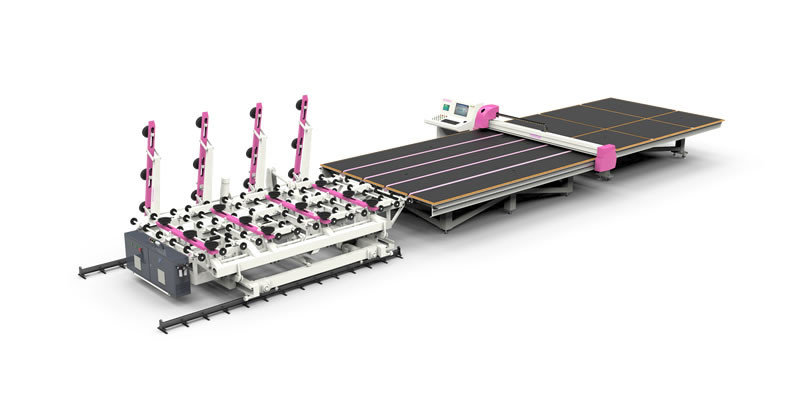

Customized Full Automatic CNC Glass Cutting Machine Line 4228
High-Speed Precision Glass Cutting Solution

Our fully automatic CNC glass cutting machine combines advanced technology with robust construction for efficient, high-precision glass processing. The all-in-one system features intelligent automation for superior cutting performance.

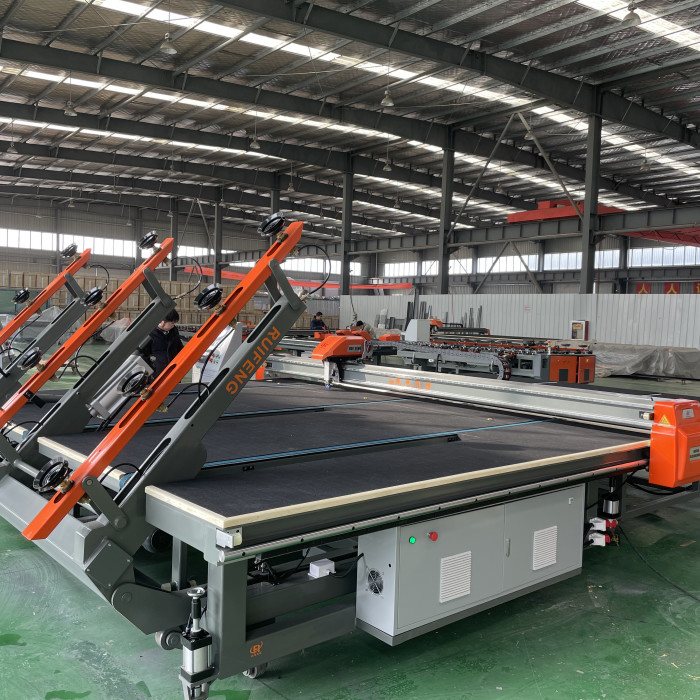

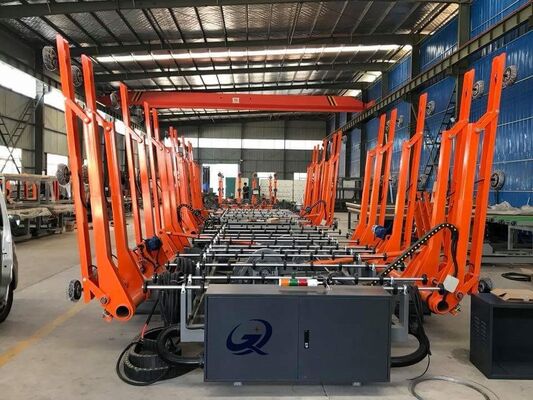

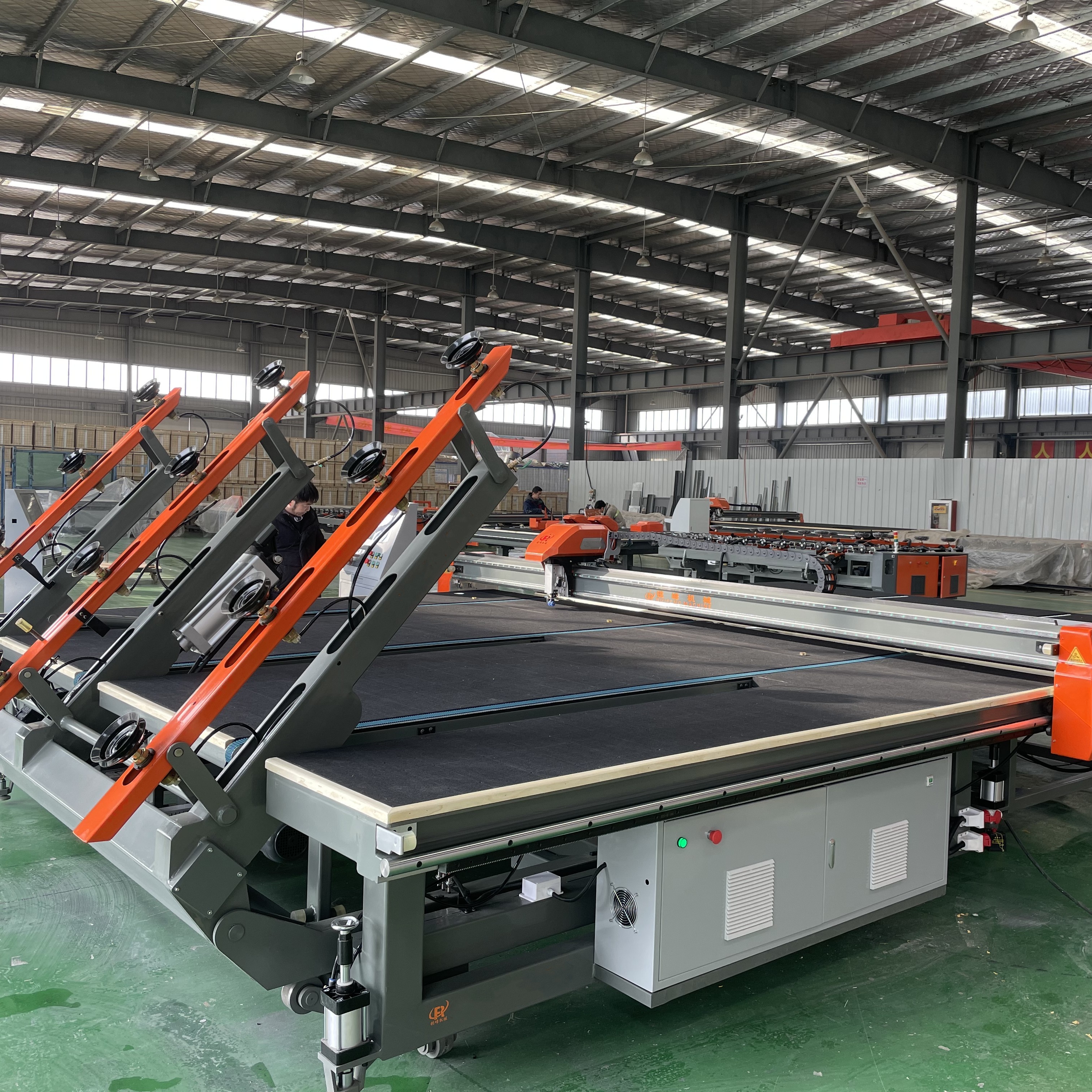

13Kw CNC Glass Cutting Machine Full Auto Glass Cutting Equipment 0 13Kw CNC Glass Cutting Machine Full Auto Glass Cutting Equipment 1
Equipment Configuration
Mechanical Configuration Electrical Components
Flip gear chain - High-precision wear-resistant type PLC controller/frequency converter - Delta
Transmission roller - PU material Pressure Sensor - SMC
Vacuum suction cup - Nitrile rubber material (double adsorption structure) Main control solenoid valve - Taiwan Adek
Vacuum pump - 60 CBM (German technology) Contactor - Schneider
Sucker Pad - Silica gel Control Cable - Flexible shielded cable, cable life ≥ 5 years
Motor - Bonfigli Proximity switch/photoelectric switch - Fanics
Cylinder/pipe - AirTAC Relay - Weidmuller
Technical Parameters
Total Equipment Dimensions: 6000 × 4200 × 900mm
Maximum Loading Size: 3700 × 2800mm
Glass Loading Thickness: 3-19mm flat glass
Maximum Loading Load: 900 kg
Glass Fetching Time: ≤ 40 seconds/sheet (adjustable)
Upper Flip Arm: Single flip with 3 arms for single-sided suction cup
Loading Station: One station
Number of Sucker Pads/Arm: 4 sucker pads
Maximum Suction Depth: 700mm
Vacuum Pressure: -90~0Kpa (adjustable based on glass thickness)
Power Supply: 380V/50HZ
Equipment Power: Approx. 13KW
Compressed Air: 0.6 Mpa (provided by user)
