380V Automated Glass Cutting Customized 19mm Thickness CNC Glass Cutter

1 set
MOQ
38000
Price
380V Automated Glass Cutting Customized 19mm Thickness CNC Glass Cutter
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: CNC Glass Cutting Machine
Application: Building Material Shops, Manufacturing Plant,
Supply Scope: Loading Table, Cutting Table, Breaking Table.
Voltage: 380V 50Hz
Machine Dimension: 5,300*14,000*900mm
Glass Fetching Time: ≤ 40 Scends/sheet
After-sales Service Provided: Field Maintenance And Repair Service
Condition: New
Weight: According To The Size
Power(w): 13kw
Glass Thickness: 3~19mm,
Warranty: 1 Year
Usage: Glass Cutting
Color: Customized
Highlight:

380V Automated Glass Cutting

,

Automated Glass Cutting Customized

,

19mm Thickness CNC Glass Cutter
Basic Infomation
Place of Origin: CHINA
Brand Name: QJ
Model Number: 4228
Payment & Shipping Terms
Packaging Details: containers
Delivery Time: 90 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 50sets per month
Product Description

CNC Full Automatic CNC Glass Cutting Machine for Glass Cutting High Speed Before Tempered Glass Machine

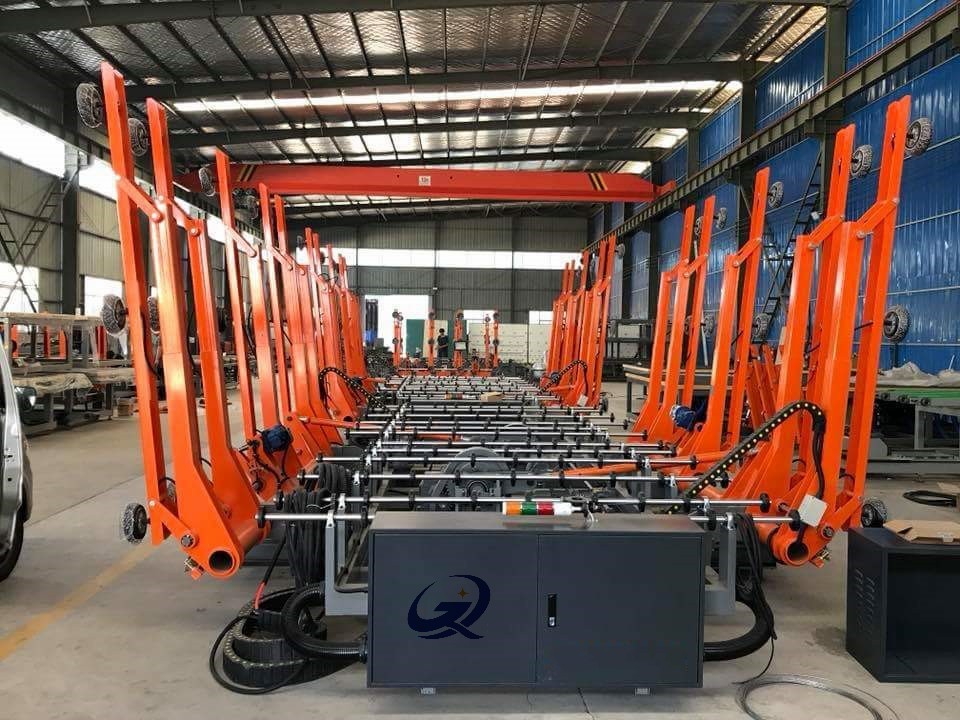

380V Automated Glass Cutting Customized 19mm Thickness CNC Glass Cutter 0

All in one CNC Full automatic high speed glass cutting machine

Equipment Configuration:

Mechanical configuration   Electrical components

Flip gear chain

High-precision wear-resistant type



PLC controller/frequency converter

Delta

Transmission roller



PU material



Pressure Sensor

SMC

Vacuum suction cup

Nitrile rubber

material(double adsorption

structure)



Main control solenoid valve

Taiwan Adek

Vacuum pump

Vacuum (60 CBM)-(German

technology)



Contactor

Schneider

Sucker Pad

Silica gel



Control Cable

Flexible shielded cable, cable life ≥ 5 years

Motor

Bonfigli



Proximity switch/photoelectric switch

Fanics

Cylinder/pipe

AirTAC



Relay

Weidmuller



3. Technical Parameters :

Total Equipment dimensions

6000*4200*900mm



Upper flip arm

Single flip

Maximum loading size

 3700*2800mm

Loading station

One stations

Glass loading thickness

3-19mm flat glass



Upper flip arm

3arms for Single-sided suction cup

Maximum loading load

900 kg



Number of sucker pad/arm

4 sucker pads

Glass fetching time

≤ 40 scend/sheet

(adjustable)



Power



380V/50HZ

Maximum suction depth

最大吸片深度



700mm



Equipment power

设备功率

Approx. 13KW

约 13 KW

Vacuum pressure

真空压力

-90~0Kpa

(根据玻璃厚度可调)



Compressed air

压缩空气



0.6 Mpa(Provide by user)
