Automotive Front Windshield Glass Bending Furnace Glass Tempering Equipment

1
MOQ
USD 35,000.00
Price
Automotive Front Windshield Glass Bending Furnace Glass Tempering Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Framematerial: High-Quality Steel
Productname: Heat Soak Furnace For Tempered Glass
Safetyfeatures: Emergency Stop, Overheat Protection
Maxglasssize: 2200 X 1200 Mm
Minglassthickness: 2 Mm
Application: Automotive, Architectural, Furniture Glass Tempering
Productioncapacity: 200pcs Per Shift
Controlsystem: PLC Touch Screen Control
Powersupply: 380V, 50Hz, 3 Phase
Installationtype: Floor Mounted
Coolingmethod: High-Pressure Air Quenching
Heatingmethod: Electric Infrared Heating
Machinetype: Fully Automatic / Semi Automatic / Manual
Temperingtemperaturerange: 600°C - 700°C
Maxglassthickness: 6 Mm
Voltage: 220/380/415/480V,380V 50HZ/ 220V 50HZ,380v,220/380/400 V Etc.,380v/50hz
Condition: New
Weight: 30000kg,according To The Size
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,Online Support,commissioning And Training
Dimension(l*w*h): 19300*8000*3500mm,according To The Size
Power(w): 600KW,600KVA
Glass Thickness: 2-6mm
Maxglasswidth: 2200mm
Energyconsumption: 15-30 KW Per Hour
Maxglasslength: 1200mm
Highlight:

Front Windshield Glass Bending Furnace

,

Automotive Windshield Glass Bending Furnace

,

Windshield Glass Tempering Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: VIBRAN
Certification: CE
Model Number: LV-CTB
Payment & Shipping Terms
Delivery Time: 120 DAYS
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10 SETS
Product Description

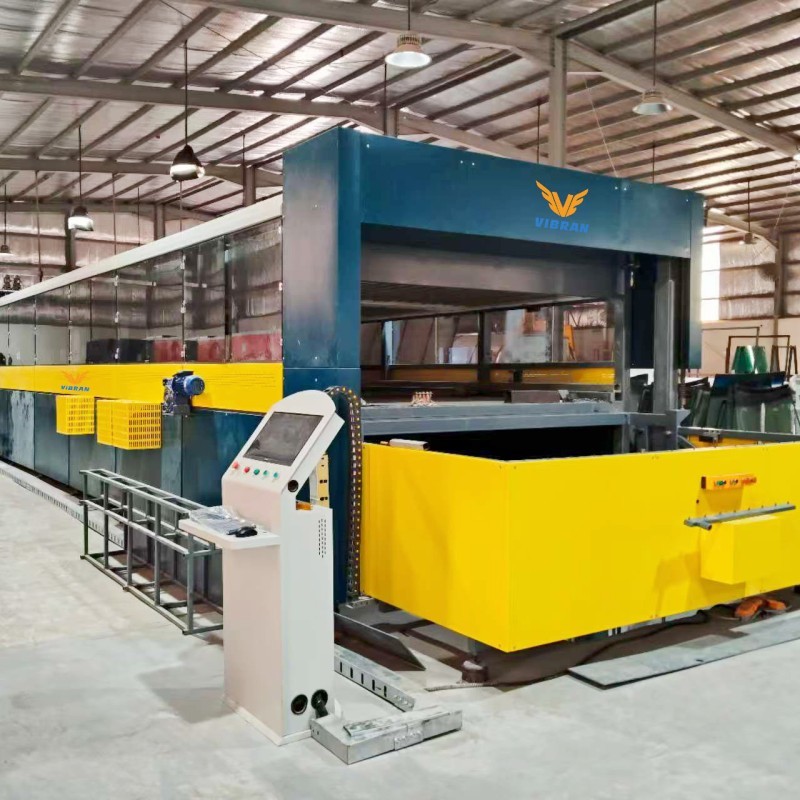

Automotive Front Windshield Glass Bending Furnace
The Automotive Front Windshield Glass Bending Furnace is professional industrial equipment specifically designed for forming and processing automotive front windshield glass. This advanced system integrates heating, bending, and cooling technologies to deliver high-precision, efficient, and stable glass bending solutions for the automotive glass manufacturing industry.
Core Functions & Working Principle
This bending furnace thermally forms flat glass into curved front windshields that perfectly fit automotive body contours. The fully automated process minimizes manual intervention and ensures consistent product quality. The working principle involves:
  • Preheating: Automatic feeding system conveys flat glass to preheating zone for even heating to prevent thermal stress
  • Heating: Glass heated to softening temperature (600-650℃) under precise temperature control
  • Forming: Softened glass pressed and shaped by professional molds matching automotive windshield contours
  • Cooling: Formed glass gradually cooled and tempered in cooling zone to ensure strength and safety performance
Key Technical Advantages
  • Precise Temperature Control: Intelligent temperature control system with high-sensitivity sensors ensures uniform heating with ±2℃ accuracy, preventing glass breakage and ensuring consistent curvature
  • Customizable Mold Design: Professional bending molds made from high-temperature resistant materials with excellent wear resistance and long-term shape stability for various automotive models
  • High Automation Level: Fully automatic feeding, conveying, forming, cooling, and discharging systems enable continuous production with capacity of 100-300 pieces per shift
  • Energy-Saving & Environmental Protection: Advanced insulation materials and energy-saving heating elements reduce energy consumption by 15-20% with no harmful emissions
  • Stable & Durable Performance: High-quality steel construction with precision welding and heat treatment ensures structural stability and long service life
Product Specifications
Parameter Name Specification
Applicable Glass Size 1500*800mm - 2200*1200mm (customizable)
Heating Temperature Range 500-700℃
Temperature Control Accuracy ±2℃
Production Capacity 100-300 pieces/shift
Power 300-600KW (depending on model)
Cooling Method Forced air cooling + natural cooling
Control System PLC + Human-Machine Interface
Applicable Scenarios
This bending furnace is widely used in automotive glass manufacturing enterprises, including OEM supporting manufacturers and after-market glass production factories. Suitable for producing front windshields for sedans, SUVs, MPVs, trucks, and new energy vehicles. Custom solutions available for special vehicle requirements.
Product Features & Customer Benefits
  • High Precision: Perfect automotive body matching reduces installation difficulty and improves vehicle safety
  • High Efficiency: Continuous automatic production increases capacity while reducing labor costs
  • Energy Saving & Cost Reduction: Advanced energy-saving technology lowers operational and maintenance expenses
  • Easy Operation: Simple human-machine interface reduces operator training requirements
  • Reliable Quality: Stable performance and strict quality control ensure high product qualification rates
We provide high-quality automotive glass processing equipment with professional after-sales service. Contact us for customized Automotive Front Windshield Glass Bending Furnace solutions and detailed quotations.
