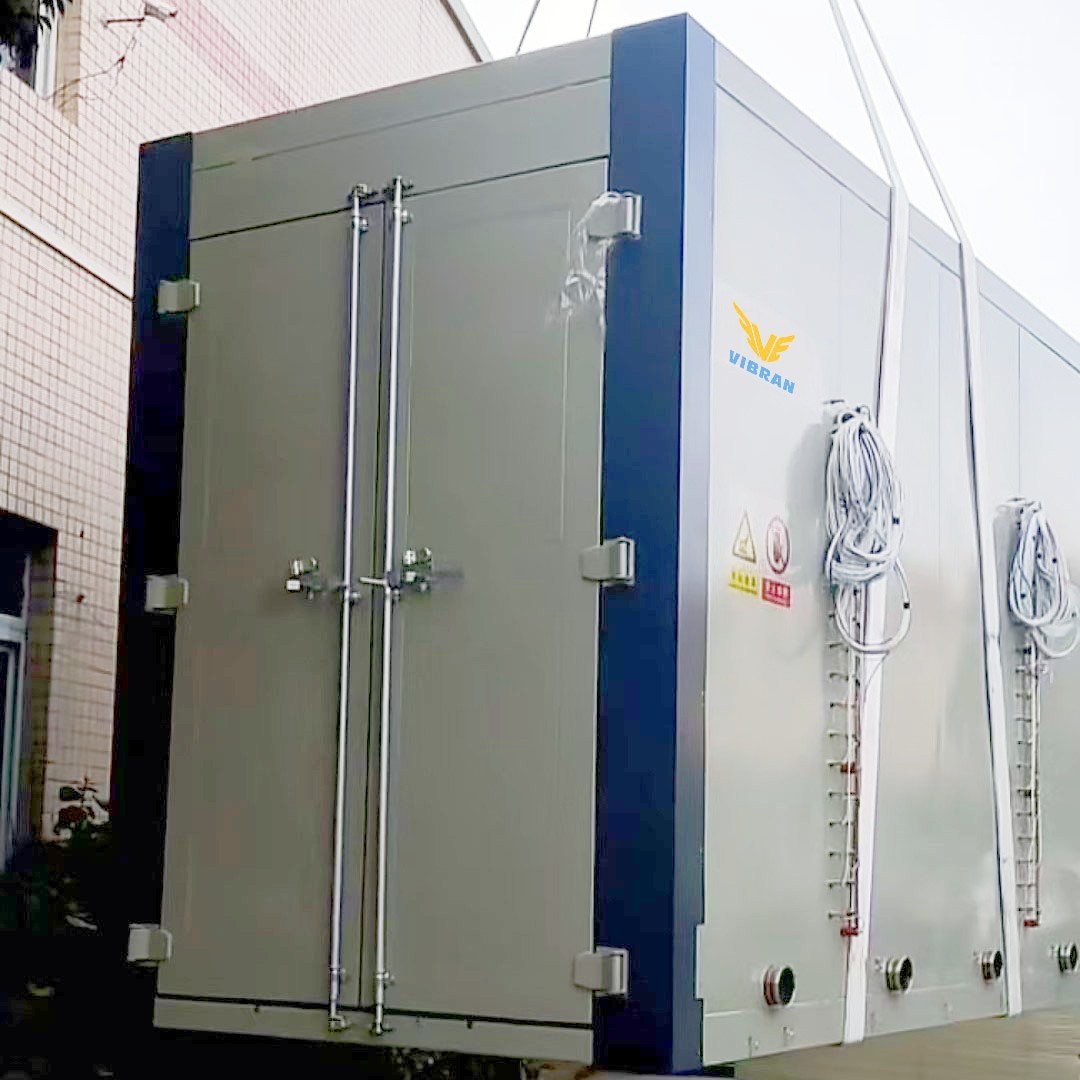

Automatic Heat Soak Furnace Tempered Glass Homogenizing Furnace

This glass homogenizing furnace is mainly used for heat soaking processing of tempered glass. It can effectively detect and eliminate the risk of spontaneous breakage caused by nickel sulfide in glass, greatly improving the safety and stability of tempered glass.

Suitable for architectural glass, furniture glass, automotive glass and other safety glass production. It features stable performance, uniform temperature field, high efficiency and easy operation.

tempered glass heat soak furnace is designed and manufactured according to the European tempered glass safety performance testing standard. The heater is switched on and off using a solid-state relay; the process parameters and program control use computer memory storage and intelligent control, and the temperature adjustment mode is controlled by the self-developed electrical control.

The temperature curve is automatically stored and printed for each furnace test report; a total of 12 sets of frequency conversion circulating fans in the furnace form a hot air forced convection circulation system, and another 4 sets of cooling fans are used to automatically control the cooling rate of the unit;

The heat pipe has corresponding thermocouples to measure the temperature, and the constant temperature controls the temperature in each area. The fixed thermocouples are distributed: 12, and the moving thermocouples on the glass surface in the furnace: 16. They are used to monitor the temperature of the glass surface in different areas, and the computer interface displays it in a timely manner.
