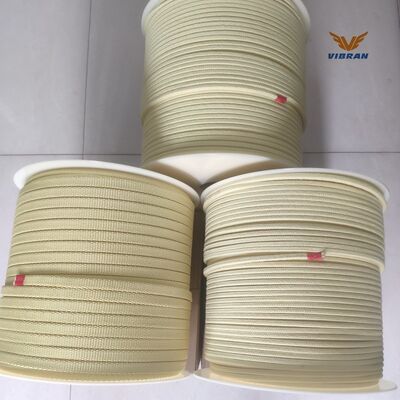

High-Performance Aramid Roller Rope for Glass Tempering Furnaces — Extreme Heat Resistance & Superior Glass Protection
Overview
Engineered for the extreme environment of glass tempering, our premium Aramid Roller Rope is the industry-standard solution for protecting glass during the critical quenching and cooling phases. Made from 100% high-performance para-aramid fibers, this rope is spirally wound around furnace rollers to create a durable, heat-resistant cushion. It prevents direct contact between hot glass and the cooler rollers, eliminating thermal shock, scratches, and surface defects. By ensuring flawless glass conveyance, our rope significantly enhances production yield, minimizes waste, and reduces costly downtime, making it an essential component for any modern glass processing facility.
Key Features & Performance Benefits
- Exceptional High-Temperature Performance: Engineered with 100% para-aramid fiber, our rope withstands continuous operating temperatures up to 480-500°C (896-932°F). It will not melt, degrade, or stretch, ensuring reliable performance and safety during the critical glass quenching process.
- Superior Glass Surface Protection: The soft, yet durable, braided construction creates a protective cushion that prevents thermal shock, scratches, roller marks, and micro-cracks on the hot glass surface. This significantly reduces product defects and waste, increasing the yield of high-quality, flawless tempered glass.
- Unmatched Durability & Abrasion Resistance: Offering tensile strength five times greater than steel wire by weight, our aramid rope provides outstanding resistance to cutting, abrasion, and high pressure from constant roller contact. This extends the service life of both the rope and the furnace rollers, minimizing costly downtime and maintenance.
- Excellent Dimensional Stability: With very low elongation (approximately 3.6%) and a low coefficient of thermal expansion, the rope maintains its shape and tension without deforming under extreme heat. This ensures a consistent and secure wrap on the rollers for uniform glass transport and quality.
- Reduces Thermal Shock & Improves Quality: The rope's low thermal conductivity acts as a critical thermal barrier between the hot glass (approx. 700°C) and the cooler metal rollers. This controlled cooling process is essential for preventing breakage and ensuring uniform tempering, especially for sensitive products like Low-E glass.
Technical Specifications
| Specification | Details | Performance Advantage |
|---|
| Material | 100% Para-Aramid Fiber | Provides superior strength, heat resistance, and durability. Asbestos-free for enhanced workplace safety. |
| Continuous Operating Temp. | Up to 500°C (932°F) | Ensures structural integrity and performance in the most demanding quenching environments without melting or degrading. |
| Construction Profiles | Square Braided, Flat Braided, Round Braided | Versatile options to ensure a secure, stable fit on various roller types and diameters. |
| Available Sizes | Customizable; Common sizes include 5.5x5.5mm, 8x4mm, 12x3mm | Guarantees compatibility with major furnace brands, including Tamglass, and allows for optimized roller wrapping. |
| Tensile Strength | ~5x stronger than steel wire by weight | Resists stretching and breaking under tension, leading to a longer operational lifespan and reduced maintenance. |
| Elongation at Break | Approx. 3.6% | Low stretch ensures the rope remains tight on the roller, providing consistent glass support and preventing marks. |
| Color | Natural Yellow | Standard industry color for high-performance aramid fiber products. |
Applications & Compatibility
Our Aramid Roller Rope is the ideal solution for high-temperature glass handling processes.
- Primary Application: Wrapping transport rollers in the quench and cooling sections of horizontal glass tempering furnaces.
- Other Uses: Suitable for rollers on glass bending ovens, automotive glass production lines, and loading/unloading tables for glass lamination.
- Furnace Compatibility: Our ropes are available in a wide range of standard and custom sizes (e.g., 5.5x5.5mm, 12x4mm) to ensure seamless integration with furnaces from all major manufacturers, including Tamglass.
Flat Rope Size (Can be customized)
| Model | Width (mm) | Thickness (mm) |
|---|
| 8 x 3 | 8 | 3 |
| 8 x 4 | 8 | 4 |
| 10 x 3 | 10 | 3 |
| 10 x 4 | 10 | 4 |
| 10 x 5 | 10 | 5 |
| 12 x 3 | 12 | 3 |
| 12 x 3.5 | 12 | 3.5 |
| 12 x 4 | 12 | 4 |
| 12 x 4.5 | 12 | 4.5 |
| 12 x 5 | 12 | 5 |
| 12 x 5.5 | 12 | 5.5 |
| 13 x 2 | 13 | 2 |
| 13 x 3 | 13 | 3 |
| 13 x 3.5 | 13 | 3.5 |
Square Rope Size (Can be customized)
| Model | Width (mm) | Thickness (mm) |
|---|
| 4 x 4 | 4 | 4 |
| 5 x 5 | 5 | 5 |
| 5.5 x 5.5 | 5.5 | 5.5 |
| 6 x 6 | 6 | 6 |
| 8 x 8 | 8 | 8 |
| 10 x 10 | 10 | 10 |
| 12 x 12 | 12 | 12 |
Round Rope Size (Can be customized)
| Dia 2mm | Dia 3mm | Dia 4mm |
|---|
| Dia 5mm | Dia 6mm | Dia 8mm |
| Dia 10mm | Dia 12mm | Dia 20mm |
Frequently Asked Questions (FAQ)
Q1: How does this aramid rope improve the quality of tempered glass?
A: The rope creates a soft, protective barrier that prevents direct contact between the hot glass and the metal rollers. This eliminates thermal shock (which can cause breakage), scratches, and roller marks, resulting in a flawless, high-quality finish.
Q2: What is the expected lifespan of the rope and what maintenance is required?
A: The lifespan depends on furnace operating conditions, but its exceptional abrasion resistance and strength ensure a long service life, significantly reducing the frequency of replacement compared to lesser materials. Maintenance is minimal; regular inspection for wear and ensuring the rope remains tightly wound is recommended.
Q3: Is this rope compatible with our existing furnace?
A: Yes. We offer a wide variety of profiles (square, flat, round) and can provide custom dimensions to match the specific requirements of your furnace rollers, ensuring compatibility with brands like Tamglass and others.
Q4: Why choose aramid fiber over other materials like fiberglass?
A: Aramid fiber offers significantly higher tensile strength, superior abrasion and cut resistance, and better thermal stability at extreme temperatures compared to fiberglass. This translates to a longer lifespan, better glass protection, and a lower total cost of ownership.
