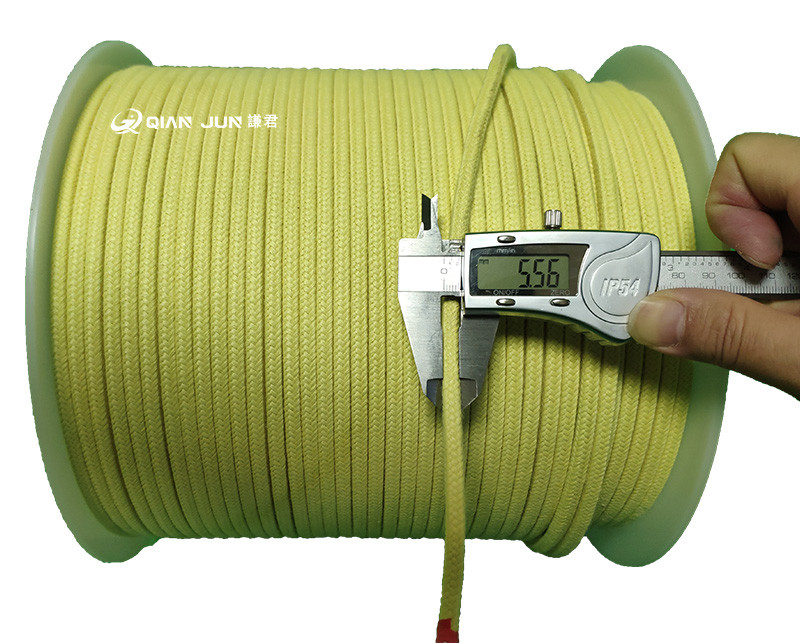

100% Kevlar Aramid Rope for Glass Tempering Furnaces
Premium Protection for Glass Processing
Engineered for extreme glass tempering environments, our premium Aramid Roller Rope is the industry-standard solution for protecting glass during critical quenching and cooling phases. Made from 100% high-performance para-aramid fibers, this rope creates a durable, heat-resistant cushion that prevents direct contact between hot glass and cooler rollers.
Key Features & Performance Benefits
- Exceptional High-Temperature Performance: Withstands continuous operating temperatures up to 480-500°C (896-932°F) without melting, degrading, or stretching.
- Superior Glass Protection: Soft, durable braided construction prevents thermal shock, scratches, roller marks, and micro-cracks on glass surfaces.
- Unmatched Durability: Tensile strength five times greater than steel wire by weight, with outstanding resistance to cutting and abrasion.
- Excellent Dimensional Stability: Low elongation (~3.6%) and thermal expansion maintains shape and tension under extreme heat.
- Reduces Thermal Shock: Low thermal conductivity acts as a barrier between hot glass (~700°C) and cooler metal rollers.
Standard Sizes (Custom Sizes Available)
Square Rope
| Model |
Width (mm) |
Thickness (mm) |
| 4 x 4 |
4 |
4 |
| 5 x 5 |
5 |
5 |
| 5.5 x 5.5 |
5.5 |
5.5 |
| 6 x 6 |
6 |
6 |
| 8 x 8 |
8 |
8 |
| 10 x 10 |
10 |
10 |
| 12 x 12 |
12 |
12 |
Round Rope
Available diameters: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 20mm
Flat Rope
| Model |
Width (mm) |
Thickness (mm) |
| 8 x 3 |
8 |
3 |
| 8 x 4 |
8 |
4 |
| 10 x 3 |
10 |
3 |
| 10 x 4 |
10 |
4 |
| 10 x 5 |
10 |
5 |
| 12 x 3 |
12 |
3 |
| 12 x 3.5 |
12 |
3.5 |
| 12 x 4 |
12 |
4 |
| 12 x 4.5 |
12 |
4.5 |
| 12 x 5 |
12 |
5 |
| 12 x 5.5 |
12 |
5.5 |
| 13 x 2 |
13 |
2 |
| 13 x 3 |
13 |
3 |
| 13 x 3.5 |
13 |
3.5 |
Technical Specifications
| Specification |
Details |
Performance Advantage |
| Material |
100% Para-Aramid Fiber |
Superior strength, heat resistance, and durability. Asbestos-free for enhanced safety. |
| Continuous Operating Temp. |
Up to 500°C (932°F) |
Ensures structural integrity in demanding quenching environments. |
| Construction Profiles |
Square Braided, Flat Braided, Round Braided |
Versatile options for secure fit on various roller types. |
| Tensile Strength |
~5x stronger than steel wire by weight |
Resists stretching and breaking under tension. |
| Elongation at Break |
Approx. 3.6% |
Low stretch ensures rope remains tight on rollers. |
| Color |
Natural Yellow |
Standard industry color for high-performance aramid fiber. |
Applications & Compatibility
- Primary Application: Wrapping transport rollers in quench and cooling sections of horizontal glass tempering furnaces.
- Other Uses: Glass bending ovens, automotive glass production lines, and loading/unloading tables for glass lamination.
- Furnace Compatibility: Available in standard and custom sizes for seamless integration with Tamglass and other major manufacturers.
Product Features
Woven with Kevlar aramid fibers
Strong tensile strength
Fire retardant
High temperature resistance (560℃)
Wear resistance
Cut resistance
Corrosion resistance
High pressure resistant
High intensity
Abrasion resistant
Heat resistant
Chemical resistant
Electrical Insulator
Good mechanical property
Frequently Asked Questions
How does this aramid rope improve tempered glass quality?
The rope creates a soft, protective barrier that prevents direct contact between hot glass and metal rollers, eliminating thermal shock, scratches, and roller marks for flawless finish.
What is the expected lifespan and maintenance requirements?
Exceptional abrasion resistance ensures long service life with minimal maintenance - just regular inspection for wear and ensuring tight winding.
Is this rope compatible with our existing furnace?
Yes. We offer multiple profiles and custom dimensions to match specific furnace roller requirements, ensuring compatibility with Tamglass and other brands.
Why choose aramid fiber over fiberglass?
Aramid offers higher tensile strength, superior abrasion resistance, and better thermal stability at extreme temperatures, resulting in longer lifespan and better glass protection.
Quality Assurance
We guarantee 100% high-quality aramid yarn production with no adulteration. Quality issues are covered by our return policy.
Packing & Delivery
Minimum order: 1 roll (250 meters). As professional manufacturers with large-scale stock, we ensure uninterrupted supply of multi-specification products.
