Composite Nylon Vacuum Bagging Film Leakproof 2700mm 3000mm Width

200M(1ROLL)
MOQ
USD1.00 per SQM
Price
Composite Nylon Vacuum Bagging Film Leakproof 2700mm 3000mm Width
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Vacuum Bagging Film For Laminated Glass
Film Width: 1650mm, 2100mm, 2300mm, 2500mm, 2700mm, 3000mm
Roll Length: 200meters
Film Thickness: 100µm (0.1mm)
Melting Point: 220℃ （428°F）
Tensile Strength: ≥200Mpa
Environmental Protection: Green And Environmental Protection
Highlight:

Composite Nylon Vacuum Bagging Film

,

Vacuum Bagging Film Leakproof

,

2700mm Vacuum Bagging Film
Basic Infomation
Place of Origin: CHINA
Brand Name: VIBRAN
Model Number: VB-VAC
Payment & Shipping Terms
Packaging Details: cartons
Delivery Time: 5-10days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000 rolls per day
Product Description
Composite Vacuum Nylon Bagging Film - Leakproof Solution for Laminated Glass
Revolutionizing Laminated Glass Manufacturing
Our composite vacuum nylon bagging bag and release film combination is specially engineered for the laminated glass industry, addressing critical production challenges with advanced sealing performance and damage-free demolding capabilities.
Key Features and Benefits
  • Advanced Sealing Technology: Three-layer composite structure with heat-sealing strength of 12N/15mm and 99.5% vacuum retention rate
  • Exceptional Thermal Stability: Withstands continuous 130°C and peak 150°C temperatures without deformation
  • Optimized Release Film: Fluorocarbon-modified polyester with precise 5-8g/inch release force and 92% light transmittance
  • Enhanced Durability: 35MPa tear strength with anti-slip surface texture reduces production losses
  • Quality Certified: ISO 9001 and EU CE certified for reliable performance
Performance Advantages
Eliminates air bubbles and delamination issues while improving impact resistance and sound insulation properties of laminated glass. Compared to traditional materials, offers 30% longer service life and 15% lower cost per square meter.
Technical Specifications
Property Specification
Heat-sealing Strength 12N/15mm
Vacuum Retention 99.5% at -0.098MPa
Temperature Resistance 130°C continuous / 150°C peak
Tear Strength 35MPa
Standard Film Width 1650mm, 2100mm, 2300mm, 2500mm, 2700mm, 3000mm
Item Folding width (mm) Unfolding width (mm) Thickness (µm) Roll Length (meter) Area (SQM) Melting Temperature (℃)
1 850 1700 100 200 meters 340 220
2 1100 2200 100 200 meters 440 220
3 1200 2400 100 200 meters 480 220
4 1400 2800 100 200 meters 560 220
5 1500 3000 100 200 meters 600 220
Applications
Ideal for manufacturers of architectural, automotive, and specialty laminated glass. Suitable for both automated production lines and manual operation stations.
Composite Nylon Vacuum Bagging Film Leakproof 2700mm 3000mm Width 0

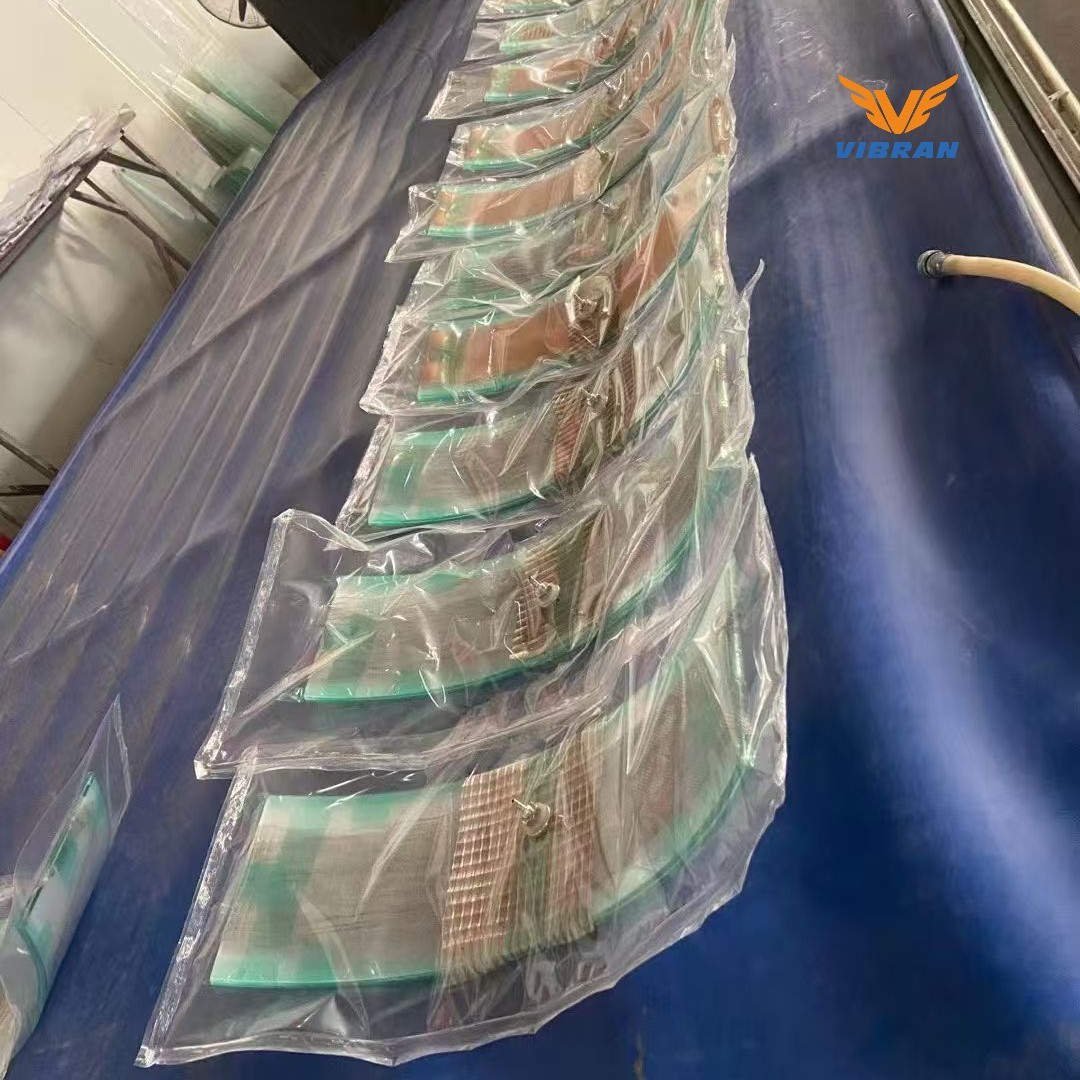

Vacuum bagging film in laminated glass production
Composite Nylon Vacuum Bagging Film Leakproof 2700mm 3000mm Width 1

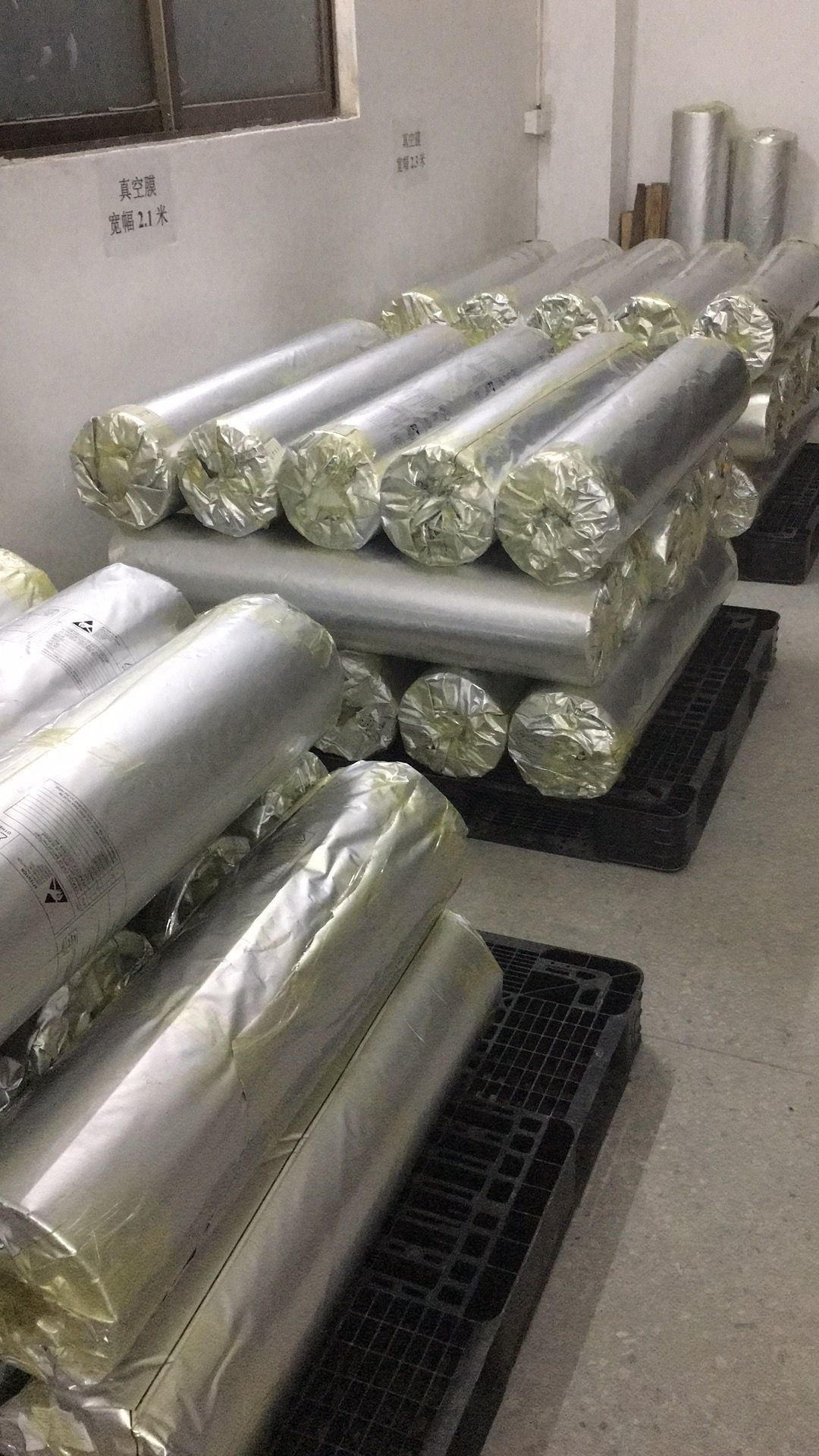

Close-up of vacuum bagging film structure
