Name: 3000mm Width Vacuum Bagging Film
Brand: Luoyang Vibran Technology Co., Ltd
SKU: VB-VAC
Price: 720 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Vacuum Bagging Film

Material: Composite Nylon Film

Width: 3000mm

Application: Laminated Glass

Highlight:

3000mm Width Vacuum Bagging Film

Laminated glass Bagging Film

2300mm Width Vacuum Bagging Film

Basic Infomation

Place of Origin: CHINA

Brand Name: VIBRAN

Model Number: VB-VAC

Payment & Shipping Terms

Packaging Details: Roll

Delivery Time: 10 days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 500 ROLLS per day

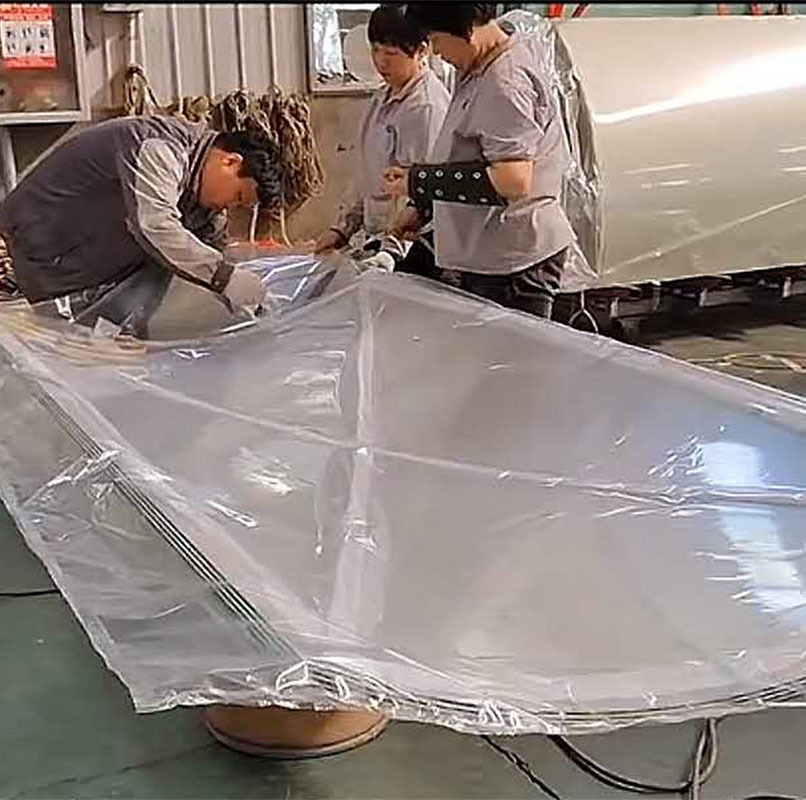

Gallery

3000mm Width Vacuum Bagging Film

Product Description

Vacuum Bagging Film for Laminated Glass Use with 3000mm Width

High temperature resistant nylon vacuum bag film with a temperature resistance range from 160-240℃. Features high tensile strength and is specially designed for composite material hot-press molding processes. Provides excellent barrier properties under high temperature and high pressure conditions, suitable for various resin system vacuum bag technologies.

Standard Size Options

Item	Unfolding width (mm)	Folding width (mm)	Thickness ( µm)	Roll Length (meter)	Max Temperature (℃)
1	1700	850	100	200 meters	160
2	2200	1100	100	200 meters	160
3	2400	1200	100	200 meters	160
4	2800	1400	100	200 meters	160
5	3000	1500	100	200 meters	160

Technology Advantages

Capable of processing various difficult laminated glass types (including curved glass, embossed glass, and DuPont SGP explosion-proof film laminating)
High yield production with easy-to-learn processes
Lower investment cost compared to similar foreign products
Trusted by major companies including CSG, AVIC Sanxin, Chuangyi Technology, and Jiangmen Junfa Glass

Vacuuming Process Overview

Our vacuum film solution addresses common challenges in laminated glass production:

Eliminates issues with curved tempered or hot-bending glass laminating where normal rolling processing is impossible
Replaces traditional vacuum strip methods that often result in quality problems due to incomplete sealing
Reduces equipment and process costs by eliminating the need for drying boxes
Solves sealing problems with patterned or uneven glass surfaces
Enables direct autoclave processing with complete glass sealing for superior results

Our method features high yield, efficiency, and ease of operation, while also being suitable for producing extra large and wide laminated glass panels.
