Home /Products/Fused Silica Roller/85mm 95mm Fused Silica Roller High Temperature Alumina Ceramic Roller

85mm 95mm Fused Silica Roller High Temperature Alumina Ceramic Roller

4 pcs
MOQ
USD 500 per piece
Price
85mm 95mm Fused Silica Roller High Temperature Alumina Ceramic Roller
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Fused Silica Ceramic Rollers
Application: Glass Tempering Furnace Machine
Raw Material: Silica 99.8%
Bulk Density: >1.98 (g/cm3)
Apparent Porosity: 7-11 (%)
Compression Strength: ≥60 (MPa)
Diameter: 55mm, 60mm, 85mm, 95mm Etc
Surface Roughness: ≤1.5 (μm)
Packing: Fumigate Wooden Case
MOQ: 5 Pcs
Highlight:

95mm Fused Silica Roller

,

85mm Fused Silica Roller

,

High Temperature Alumina Ceramic Roller
Basic Infomation
Place of Origin: CHINA
Brand Name: VIBRAN
Model Number: VB-CER
Payment & Shipping Terms
Packaging Details: Fumigate Wooden Case
Delivery Time: 30days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000 rolls
Product Description
High Temperature Fused Silica Quartz Glass Tempering Furnace Alumina Ceramic Roller Kiln
Glass Tempering Furnace Ceramic Roller
Compatible with TamGlass Glasston Unic Landglass Northglass Mountain Glass Jinglass Tempering Furnace

Product Introduction
The Fused Silica Ceramic roller consists of porcelain body, bearing, shaft and plastic labyrinth sealing ring. This ceramic roller shaft is a key component in glass horizontal tempering furnace, primarily used for carrying and transporting glass.
Applications
Glass Tempering Furnace, Silicon steel production, Lehr & float glass line, and other industrial applications.
85mm 95mm Fused Silica Roller High Temperature Alumina Ceramic Roller 0
Ceramic roller
Technical Specifications
Parameter Value
Raw Material Silica
Bulk density >1.98 (g/cm3)
Apparent porosity 7-11 (%)
Press compression 102 Mpa
Compression strength ≥60 (MPa)
Expansion coefficient 0.6*10-6/degree
Transverse strength ≥30 (Mpa)
Certification CE, RoHS
Warranty 1 years
Surface Roughness ≤1.5 (μm)
MOQ 5 Pieces
OD Tolerance ±0.05 (mm)
Radial Beat (Tolerance in rotation) ≤0.10 (mm)
Package Fumigate Wooden Case
Note: Size can be customized with special specifications
85mm 95mm Fused Silica Roller High Temperature Alumina Ceramic Roller 1
Sample drawing for reference

Product Features
  • High purity and density with low porosity
  • Smooth, delicate roller surface with minimal radial runout
  • Superior processing accuracy compared to imported alternatives
  • Anti-scratch design prevents glass damage
  • Anti-loose sleeve structure design for extended service life
  • Original grouting forming technology for high density and strength
  • High temperature resistance with no deformation
  • Wear-resistant construction for long service life
  • Reduces conveyor belt costs and maintenance requirements
  • Ideal for high-grade automotive, electronic, and solar glass manufacturing

If there is any problem with the quality, we are responsible for returning it!

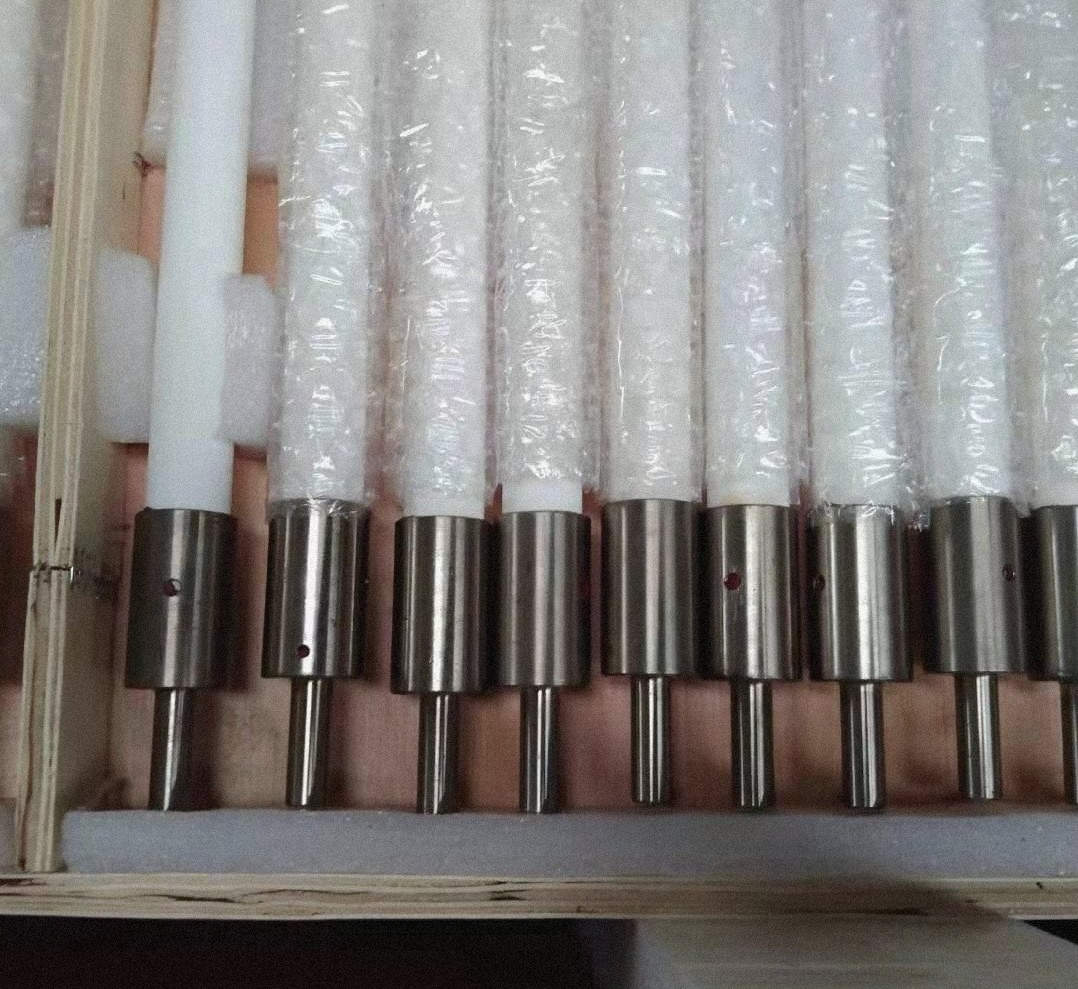

Packing & Delivery
Minimum Order Quantity: 4 pieces
As a professional manufacturer with years of experience, we offer direct sales with multi-specification options, large-scale inventory, and uninterrupted supply chain.
Quality Promise: 100% high-quality quartz production with strict quality control to serve our customers with excellence and reputation.
85mm 95mm Fused Silica Roller High Temperature Alumina Ceramic Roller 2 85mm 95mm Fused Silica Roller High Temperature Alumina Ceramic Roller 3
