Home /Products/Fused Silica Roller/Quartz Fused Silica Roller For Glass Tempering Furnace

Quartz Fused Silica Roller For Glass Tempering Furnace

4 pcs
MOQ
USD 500 per piece
Price
Quartz Fused Silica Roller For Glass Tempering Furnace
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Fused Silica Ceramic Rollers
Application: Glass Tempering Furnace Machine
Raw Material: Silica 99.8%
Bulk Density: >1.98 (g/cm3)
Apparent Porosity: 7-11 (%)
Compression Strength: ≥60 (MPa)
Diameter: 55mm, 60mm, 85mm, 95mm Etc
Surface Roughness: ≤1.5 (μm)
Packing: Fumigate Wooden Case
MOQ: 5 Pcs
Highlight:

Quartz Fused Silica Roller

,

Glass Tempering Fused Silica Roller

,

Tempering Furnace Fused Silica Roller
Basic Infomation
Place of Origin: CHINA
Brand Name: VIBRAN
Model Number: VB-CER
Payment & Shipping Terms
Packaging Details: Fumigate Wooden Case
Delivery Time: 30days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000 rolls
Product Description
Durable Quartz Fused Silica Roller for Glass Tempering Furnace
Compatible with TamGlass Glasston Unic Landglass and Jinglass
Product Introduction
The Fused Silica Ceramic roller consists of porcelain body, bearing, shaft and plastic labyrinth sealing ring. This ceramic roller shaft is a key component in glass horizontal tempering furnaces, primarily used for carrying and transporting glass.
Applications
Glass Tempering Furnace, Silicon steel production, Lehr & lor float glass line, etc.
Quartz Fused Silica Roller For Glass Tempering Furnace 0
Ceramic roller
Basic Information
Raw Material Silica Bulk density >1.98 (g/cm3)
Apparent porosity 7-11 (%) Press compression 102 Mpa
Compression strength ≥60 (MPa) Expansion coefficient 0.6*10-6/degree
Transverse strength ≥30 (Mpa) Certification CE, RoHS
Expansion Coefficient <0.6 (×10-6 /°C) Warranty 1 years
Surface Roughness ≤1.5 (μm) MOQ 5 Pieces
OD Tolerance ±0.05 (mm) Density 1.98g/cm3
Radial Beat (Tolerance in rotation) ≤0.10 (mm) Package Fumigate Wooden Case
Note: Size can be customized with special specifications

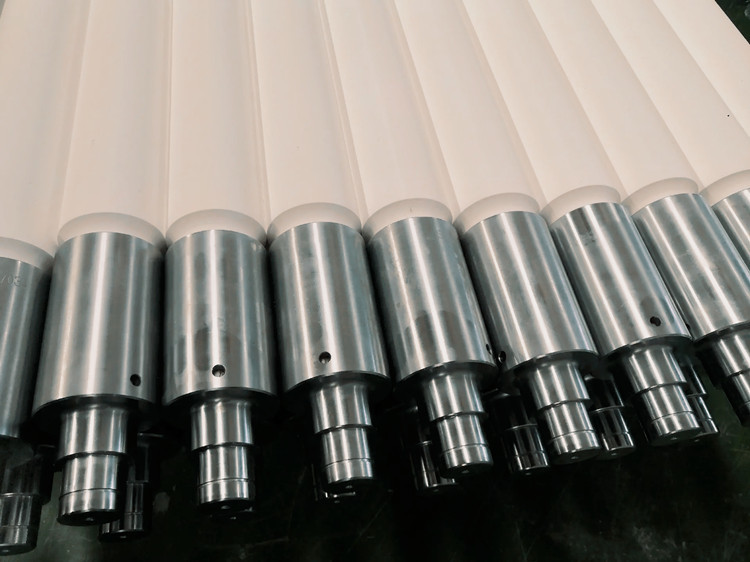

Detailed Photos
Quartz Fused Silica Roller For Glass Tempering Furnace 1
Quartz Fused Silica Roller For Glass Tempering Furnace 2
Product Features
  • High purity and high density construction
  • Low porosity and critical manufacturing measurement
  • Smooth, delicate surface with small radial runout
  • Superior processing accuracy compared to similar imported products
  • Anti-loose sleeve structure design for extended service life
  • Original grouting forming technology for high density and strength
  • No deformation at high temperature, wear resistant
  • Reduces comprehensive cost of belt conveyor and maintenance man-hours
  • Ideal for high grade Automobile, Electronic, and Solar glass manufacture
Quality Assurance
If there is any problem with the quality, we are responsible for returning it!
Packing & Delivery
MOQ: 4 pieces
We are professional manufacturers with many years of experience, offering self-produced direct sales, multi-specification options, large-scale stock availability, and uninterrupted supply.
We promise: 100% high-quality quartz production, refusal to adulterate, serving our customers with quality and reputation.
Quartz Fused Silica Roller For Glass Tempering Furnace 3
Quartz Fused Silica Roller For Glass Tempering Furnace 4
