145 Degree Glass Cutting Head Bohle Type CNC Glass Cutter Tip Carbide Glass Cutting Wheel Holder For Automatic Glass Cutting Machine

20 pcs
MOQ
USD 6.50 per piece
Price
145 Degree Glass Cutting Head Bohle Type CNC Glass Cutter Tip Carbide Glass Cutting Wheel Holder For Automatic Glass Cutting Machine
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Glass Cutting Head
Rotational Speed: 2000*1450 (mm)
Inner Hole: 12/22/50mm
Bondtype: Resin Bond, Metal Bond, Or Vitrified Bond
Height: 38mm
Color: White
Working Conditions: Wet
Gritsize: Available In Various Grits From Coarse To Fine (e.g., 50 To 3000 Grit)
Warranty: 6 Months
Grit: 80#-320#
Inner Diameter: 60/22/50/60/68/70mm
Safety: Non-toxic Materials, Designed For Safe Operation
Shape: Cup, Wheel, Disc, Or Drum Shapes
Outer Diameter: 100/125/130/150/170mm
Specification: 10S40/10S60/10S80
Application: Glass Cutting, Shaping, And Polishing
Highlight:

145 degree glass cutting head

,

Bohle type CNC glass cutter

,

carbide glass cutting wheel holder
Basic Infomation
Place of Origin: China
Brand Name: Vibran
Model Number: 145
Payment & Shipping Terms
Packaging Details: CARTONS
Delivery Time: 3 days
Payment Terms: T/T, Western Union
Supply Ability: 5000000
Product Description
145 Degree Glass Cutting Head Bohle Type CNC Glass Cutter Tip Carbide Glass Cutting Wheel Holder For Automatic Glass Cutting Machine

Product Overview

This Bohle type glass cutting head is professional spare part for full-automatic CNC glass cutting machine, widely used in flat float glass, household appliance glass, architectural door & window glass and ultra-thin electronic cover glass cutting.

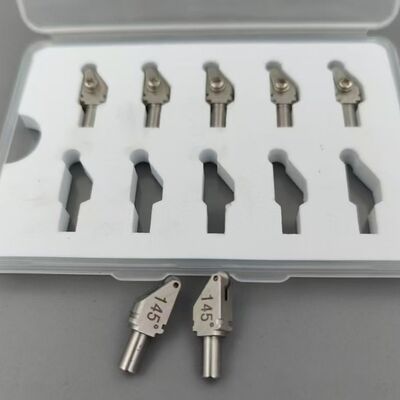

We supply 135°, 145°, 155° multiple angle cutter heads to match different glass thickness, the 145° model shown in picture is the most universal style for 3mm-8mm normal glass processing.

Product Advantages

✅ Precision Machined Stainless Steel Body

Whole cutter holder made of high-strength stainless steel, anti-rust, anti-deformation under long time high pressure cutting, stable cutting track without deviation.

✅ Wear-resistant Carbide Cutting Wheel

Adopt imported tungsten steel carbide wheel, smooth cutting surface, effectively reduce glass chipping & edge crack, longer service life than ordinary cutter tips.

✅ Easy Disassembly & Replacement

Top locking screw design, users can replace worn cutting wheel quickly without extra tools, greatly improve production efficiency.

✅ Clear Laser Mark Angle
Each cutting head laser engraved with angle mark (135°/145°/155°), easy to distinguish and stock management.


✅ Independent Storage Packing
Equipped with plastic storage box with foam positioning slots, separate placement to avoid cutter wheel collision and blade damage during transportation & storage.



Technical Specifications

Item Parameter
Product Name Bohle Type CNC Glass Cutting Head / Glass Cutter Tip
Available Angle 135° / 145° / 155°
Applicable Glass Thickness 135°: ≤2mm ultra-thin glass; 145°: 3-8mm float glass; 155°: 10-19mm thick glass
Holder Material Precision Stainless Steel
Cutting Wheel Material Tungsten Carbide Alloy
Handle Diameter Standard universal shank for most automatic glass cutting machine
Compatible Machine Silver Rui, Bohle, Bottero, Chaoyang full-automatic glass cutting equipment
Packing Custom plastic box with foam inner tray

Application Scenarios

  • Architectural glass processing: door, window, curtain wall flat glass cutting
  • Home appliance glass: refrigerator, TV, oven glass panel cutting
  • Electronic glass: touch screen, cover ultra-thin glass slicing
  • Craft glass: irregular special-shaped CNC cutting
  •

Service Support

  1. Multiple angles in stock, fast delivery for bulk order
  2. Support customized marking & customized packing for distributors
  3. Strict quality inspection before shipment, stable spare part supply for glass processing factories
  4. Professional after-sales technical support for cutter head installation & usage adjustment
